LIY(St)CY-TP

LIY(St)CY-TP

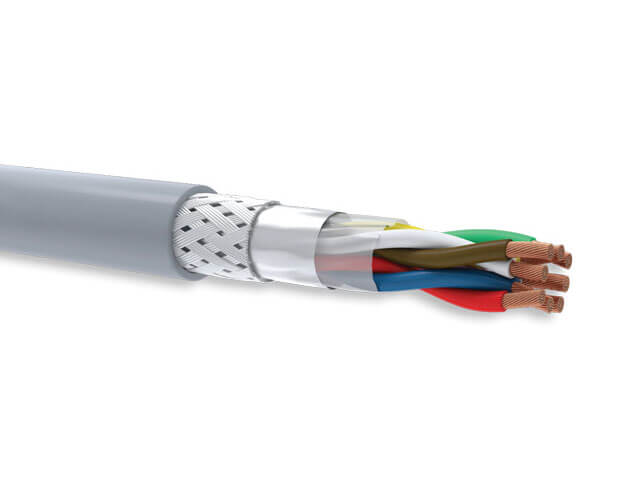

LIY(St)CY-TP Yapısı

Teknik Bilgiler

Esnek yapıları ile dar alanlarda rahatlıkla uygulanabilirler

Bu tip kablolar dış ortamlarda kullanılmaz

LIY(St)CY-TP-OZ: damarları numara kodlu kablo

Yapısı

İletken: IEC 60228; DIN VDE 0295; EN 60228 Sınıf 5 Bükülü Elektrolitik Tavlı Bakır
Yalıtkan: EN 50290-2-21 PVC Kompaund
Yalıtım Renk: DIN 47100
Büküm: Çift büküm katlar halinde

Teknik Bilgiler

Ayırıcı Bant: Pes Bant
Ekran: Al-Pes Bant + Kalaylı Bakır Örgü
Kılıf: EN 50290-2-22 PVC Kompaund
Kılıf Rengi: RAL 7001 Gri

Kullanma Yeri

  1. Elektromanyetik karışım ve girişimlerin olduğu
  2. Enstrüman ve kontrol mühendisliğinde
  3. Endüstriyel elektronikte
  4. Bilgisayar ve ofis makinelerinde
  5. Bina içi haberleşme sistemlerinde
  6. Bina içi ses sistemlerinde
  7. Güvenlik sistemlerinde

TEKNİK ÖZELLİKLER

İLETKEN
DİRENCİ		YALITIM DİRENCİEFEKTİF
KAPASİTE		EMPEDANSİNDÜKTANSAKIM TAŞIMA
KAPASİTESİ		ÇALIŞMA VOLTAJI
mm²
0,22
0,34
0,50
0,75
1,0
1,5
2,5		Ω/km
79
56
39
26
19,5
13,3
7,98		MΩxkm
0,22mm²/0,34mm²= 200
≥ 0,50mm²= 20		mm²
0,22
0,34
0,50
0,75
1,0
1,5
2,5		pf/m
100
110
120
120
130
140
150		78Ω0,67 mH/kmmm²
0,22
0,34
0,50
0,75
1,0
1,5
2,5		A
2,5
4,5
6,0
13
16
20
25		0,22 ve 0,34 mm² = 250 V
≥ 0,50 mm² = 300/500 V
TEST VOLTAJIBÜKÜLME
YARIÇAPI		ÇALIŞMA
SICAKLIĞI		ALEV GECİKTİRİCİLİK TESTİEMC*
0,22 ve 0,34 mm² = 1200 V
≥ 0,50 mm² = 2000 V		10x Cable Ø-30ºC+70ºCIEC 60332-1-2
DIN EN 60332-1-2
EN 60332-1-2		ELEKTROMANYETİK
UYUMLU



ONLINE FİYAT TALEP FORMU

KOD NODAMAR SAYISI VE KESİTİ
(mm2)		KABLO ÇAPI
(mm)		BAKIR AĞIRLIĞI
(kg/km)		YAKLAŞIK KABLO AĞIRLIĞI
(kg/km)		STANDART UZUNLUK
(mt)
3225220232 x 2 x 0,225,902044100/500/1000
3225220333 x 2 x 0,226,202158100/500/1000
3225220434 x 2 x 0,226,702867100/500/1000
3225220535 x 2 x 0,227,403378100/500/1000
3225220636 x 2 x 0,228,103692100/500/1000
3225220737 x 2 x 0,228,6041101
3225220838 x 2 x 0,228,9046111100/500/1000
32252210310 x 2 x 0,2210,3056140100/500/1000
32252212312 x 2 x 0,2210,5063154100/500/1000
32252214314 x 2 x 0,2211,2073173100/500/1000
32252216316 x 2 x 0,2211,7081192100/500/1000
32252218318 x 2 x 0,2212,3092210100/500/1000
32252220320 x 2 x 0,2213,40102240100/500/1000

3225340232 x 2 x 0,346,502352100/500/1000
3225340333 x 2 x 0,346,903071100/500/1000
3225340434 x 2 x 0,347,503783100/500/1000
3225340535 x 2 x 0,348,5045109100/500/1000
3225340636 x 2 x 0,349,1053115100/500/1000
3225340737 x 2 x 0,349,6060128
3225340838 x 2 x 0,3410,3066148100/500/1000
32253410310 x 2 x 0,3411,5080175100/500/1000
32253412312 x 2 x 0,3411,6094196100/500/1000
32253414314 x 2 x 0,3412,50107225100/500/1000
32253416316 x 2 x 0,3413,60121260100/500/1000
32253418318 x 2 x 0,3414,30138285100/500/1000
32253420320 x 2 x 0,3415,10150315100/500/1000

3225500232 x 2 x 0,508,003073100/500/1000
3225500333 x 2 x 0,508,503889100/500/1000
3225500434 x 2 x 0,509,2050105100/500/1000
3225500535 x 2 x 0,5010,6056139100/500/1000
3225500636 x 2 x 0,5011,5070155100/500/1000
3225500737 x 2 x 0,5012,0075182100/500/1000
3225500838 x 2 x 0,5012,5085204100/500/1000
32255010310 x 2 x 0,5014,50106249100/500/1000
32255012312 x 2 x 0,5014,80123283100/500/1000
32255014314 x 2 x 0,5015,70141315100/500/1000
32255016316 x 2 x 0,5016,70158352100/500/1000
32255018318 x 2 x 0,5017,50177387100/500/1000
32255020320 x 2 x 0,5018,90196438100/500/1000

3225750232 x 2 x 0,758,604087100/500/1000
3225750333 x 2 x 0,759,2055103100/500/1000
3225750434 x 2 x 0,7510,4066143100/500/1000
3225750535 x 2 x 0,7511,5085174100/500/1000
3225750636 x 2 x 0,7512,5096201100/500/1000
3225750737 x 2 x 0,7513,60110232100/500/1000
3225750838 x 2 x 0,7514,00125257100/500/1000
32257510310 x 2 x 0,7515,70155315100/500/1000
32257512312 x 2 x 0,7516,10180341100/500/1000
32257514314 x 2 x 0,7517,10205396100/500/1000
32257516316 x 2 x 0,7518,60235467100/500/1000
32257518318 x 2 x 0,7519,50260509100/500/1000
32257520320 x 2 x 0,7520,70285553100/500/1000

3225010232 x 2 x 19,3048110100/500/1000
3225010333 x 2 x 110,3066143100/500/1000
3225010434 x 2 x 111,3085175100/500/1000
3225010535 x 2 x 112,40107210100/500/1000
3225010636 x 2 x 113,90125256100/500/1000
3225010737 x 2 x 114,60140284100/500/1000
3225010838 x 2 x 115,10160313100/500
32250110310 x 2 x 117,00200376100/500
32250112312 x 2 x 117,40233428100/500
32250114314 x 2 x 118,90268504100/500
32250116316 x 2 x 120,10306565100/500
32250118318 x 2 x 121,10340627100/500
32250120320 x 2 x 122,80377702100/500

3225150232 x 2 x 1,510,3065137100/500/1000
3225150333 x 2 x 1,511,0090170100/500/1000
3225150434 x 2 x 1,512,00116215100/500/1000
3225150535 x 2 x 1,513,70145270100/500/1000
3225150636 x 2 x 1,514,80168316100/500
3225150737 x 2 x 1,515,70196345100/500
3225150838 x 2 x 1,516,20220381100/500
32251510310 x 2 x 1,518,70275480100/500
32251512312 x 2 x 1,519,20320547100/500
32251514314 x 2 x 1,520,30373622100/500
32251516316 x 2 x 1,522,00425721100/500
32251518318 x 2 x 1,523,20475800100/500
32251520320 x 2 x 1,524,60525872100/500

3225250232 x 2 x 2,512,60100204100/500/1000
3225250333 x 2 x 2,513,80145264100/500/1000
3225250434 x 2 x 2,515,20186329100/500/1000
3225250535 x 2 x 2,516,80228403100/500/1000
3225250636 x 2 x 2,518,70275492100/500
3225250737 x 2 x 2,519,80316546100/500
3225250838 x 2 x 2,520,50358608100/500
32252510310 x 2 x 2,522,50442754100/500
32252512312 x 2 x 2,524,00525874100/500
32252514314 x 2 x 2,526,006101019100/500
32252516316 x 2 x 2,527,706931153100/500
32252518318 x 2 x 2,529,207761284
